| Feature | Description |
|---|

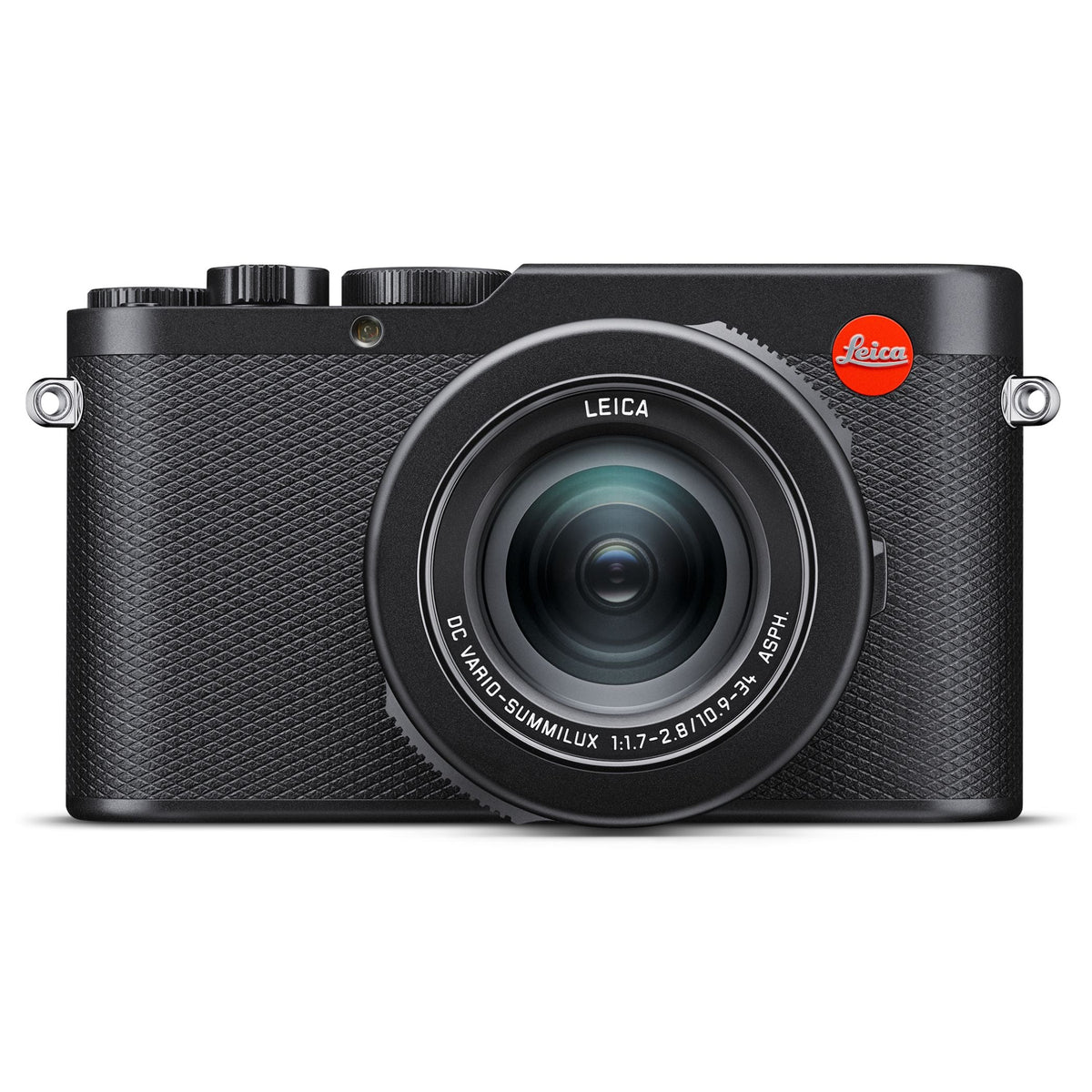

| Camera type | Digital Micro Four Thirds compact camera |
| Type No. | 3952A |
| Order No. | 19191 |
| Buffer memory | DNGTM: 14 or higher*, JPG: 100 or higher* |
| Continuous shooting speeds | DNG: 11 fps - 12, 7 fps - 12, 2fps - 100
DNG + JPG: 11 fps - 13, 7 fps - 13, 2fps - 100
JPG: 11 fps - 14, 7 fps - 14, 2fps - 100 |
| Storage medium | UHS-II (recommended), UHS-I, SD/SDHC/SDXC memory card |
| Material | Full metal housing: magnesium die-cast, leatherette covering |
| Operating conditions | 0°C to +40°C |
| Interfaces | ISO accessory shoe with additional control contacts for Leica flash units, HDMI jack Type D, USB 3.1 Gen 1 Type C |
| Tripod thread | A 1⁄4 DIN 4503 (1⁄4”) with stainless steel in the base |
| Dimensions | Please see image below |
| Weight | Approx. 397 g/357 g (with/without battery) |
| Sensor size | 4/3“ CMOS sensor, 21.77 MP/17 MP (total/effective) |
| Filter | RGB color filter, UV/IR filter |
| File formats | Photo: DNGTM (raw data), DNG + JPG, JPG (DCF 2.0, Exif 2.31)
Video: MP4, H.264, AAC stereo |
| File size | DNGTM: approx. 31 MB, depending on resolution and image content
JPG: depending on resolution and image content
Video: max. length: 29 min |
| Color depth | DNGTM: 12 bit
JPG: 8 bit |
| Color space | Photo: sRGB |
| Lens Designation | Leica DC Vario-Summilux 1:1.7–2.8/10.9–34 ASPH., 35 mm equivalent: 24–75 mm, aperture range: 1.7–16/2.8–16 (at 10.9/34 mm) |
| Lens filter thread | E43 |
| Image stabilization | Visual compensation system for photos and video recordings |
| Aperture range | Depending on zoom level, F1.7 to F16 in 1⁄3 EV increments (wide angle) F1.7 to F16; (tele zoom) F2.8 to F16 in 1/3 EV increments |
| Viewfinder (EVF) | OLED, Resolution: 2,360,000 dots, 60 fps, magnification: 0.74x, aspect ratio: 4:3, exit pupil position: 20 mm, setting range -4/+4 dpt, with eye sensor for automatic switchover |
| LCD panel | 3” TFT LCD, approx. 1,843,200 dots, 384 ppi, aspect ratio 3:2, touch panel |
| Shutter | Shutter type: Mechanical central shutter or optional electronic shutter
Shutter speeds: Mechanical shutter: 60 s to 1⁄4000 s, Electronic shutter: 1 s to 1⁄16000 s |
| Shutter button | Two-stage, (1st stage: Activation of the camera electronics including autofocus and exposure metering, 2nd stage: Taking the picture) |
| Self-timer | Delay time: 2 s or 12 s |
| Drive Mode | Single, Interval Shooting, Exposure Bracketing |
| Continuous shooting | Continuous Shooting - 2 fps, 12 bit, AF
Continuous Shooting - 7 fps, 10 bit
Continuous Shooting - 11 fps, 10 bit |
| Focusing | Focus range 50 cm to ∞ With macro setting: from 3 cm (wide angle), from 30 cm (tele zoom) |
| Focus mode | Automatic, Automatic (macro), or Manual |
| Autofocus system | Contrast detection |
| Autofocus modes | Intelligent AF (autonomously selects AFs and AFc), AFs, AFc |
| Autofocus metering methods | Spot (can be shifted), Field (can be shifted and scaled), Multi-Field, Zone (can be shifted), Eye / Face, Tracking |
| Autofocus metering fields | 49 |
| Exposure metering | TTL (exposure metering through the lens), with working aperture |
| Metering principle | Exposure metering is done by the image sensor for all exposure metering methods |
| Exposure metering methods | Spot, Center-Weighted, Multi-Field |
| Exposure modes | Program AE mode (P), Aperture-priority mode (A): manual aperture setting, Shutter-priority mode (S): manual shutter-speed setting, Manual (M): manual setting for shutter speed and aperture, Various fully automatic variants (Scene Mode): Auto, Portrait, Landscape, Night Scenery, Miniature Effect, One Point Color, HDR |
| Exposure compensation | ±3 EV in 1⁄3 EV increments |
| Automatic bracketing | 3, 5 or 7 frames, graduations between shoots up to 1 EV, in 1⁄3 EV increments additional optional exposure compensation: up to ±3 EV |
| ISO sensitivity range | Photo: Auto ISO ISO 100–ISO 25 000
Video: ISO 100–ISO 6 400 |
| White balance | Automatic (Auto), default (Daylight, Cloudy, Shadow, Tungsten, Flash), manual metering (Gray Card), manual color temperature settings (Color Temperature, 2500 K to 10000 K) |
| Flash unit | Included in the delivery: Leica CF D |
| Flash angle | Aligned with the shortest focal length of the lens of 10.9 mm |
| Guide number | 10/7 (at ISO 200/100) |
| Flash range | Approx. 0.6–14.1 m/0.3–8.5 m (at shortest/longest focal length) |
| Flash unit connector | Via the accessory shoe |
| Flash sync time | 1⁄4000 s, slower shutter speeds available |
| Flash exposure compensation | ±3 EV in 1⁄3 EV increments |
| Equipment | Microphone: Stereo
Speaker: Mono |
| WLAN | WLAN function for connecting to the Leica FOTOS app. The Leica app is available from the Apple App StoreTM or the Google Play StoreTM. IEEE802.11b/g/n Channel 1–11 (2412–2462 MHz), maximum output (e.i.r.p.): 5.9 dBm, encryption method |
| WPATM/WPA2TM |
| Bluetooth | Bluetooth 5.0 LE: Channel 0–39 (2402–2480 MHz), maximum output (e.i.r.p.): 1.2 dBm |
| GPS | Not available everywhere due to country-specific legislation; can be added via the Leica FOTOS app. Data is written to Exif header of the picture files. |
| Menu languages | English, German, French, Italian, Spanish, Portuguese, Russian, Japanese, Traditional Chinese, Simplified |
| Rechargeable battery | Leica BP-DC15, Lithium-ion rechargeable battery, rated voltage: 7.2 V (DC), capacity: 1025 mAh (min.), manufacturer: Panasonic Energy (Wuxi) Co. Ltd., Made in China |
| Charging via USB | With camera switched off: 5 V/1500 mA (2.5 W or greater) |
| Rated values for input voltage/power | 7.2 V 0.9 A (battery), 5 V 1.0 A (USB) |
