★★★★★ 1 review

Panasonic·CW ID: 1340746·MFR ID: DC-S5M2XBODY

S5 IIX

Name: Panasonic S5 IIX
Brand: Panasonic
SKU: 1340746
Price: 2099.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$2,099.99 ~~$2,199.99~~

Shipping calculated at checkout.

This item qualifies for complimentary express shipping.

Also Available In Body Only

Body Only

w/ 20-60mm

w/ 24-60mm f2.8

In Stock at San Francisco · Usually ready in 24 hours

CW Categorization

Brand Panasonic System Panasonic Lumix S

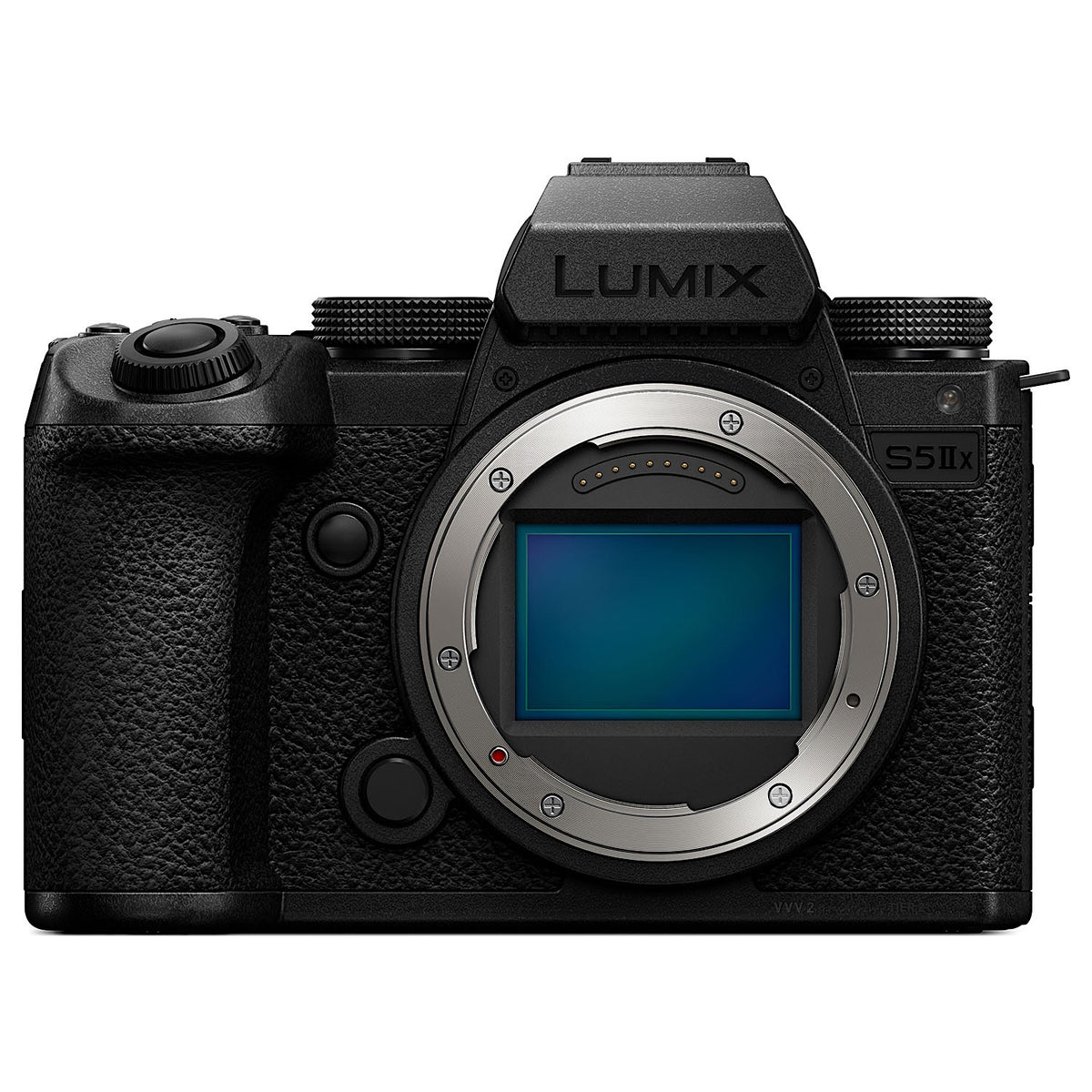

The Panasonic LUMIX S5IIX is the video-focused version of the S5II, built on a 24.2MP full-frame CMOS sensor and the first phase detection autofocus system LUMIX shipped, with 779 points working down to EV -6. What sets this model apart is what it will record: Apple ProRes 422 HQ and 4:2:2 10-bit All-Intra straight to an external SSD over USB-C, 5.8K and 6K open gate, and 5.9K 12-bit RAW out over HDMI.

The chassis is the same compact, dust and splash resistant body as the S5II, with a small internal fan and heat sink that allow unlimited 4:2:2 10-bit C4K and 4K 60p recording from 0 to 104 degrees Fahrenheit. Dual UHS-II SD slots, full-size HDMI Type A, and a 3.68 million dot finder make it easy to live with on a shoot. Worth knowing: still image performance is identical to the S5II, so the premium here buys codecs and streaming, not better photos. Call or stop by and we will walk you through which version actually fits your work.

Buy from an authorized Panasonic dealer like Camera West to ensure a genuine product with full manufacturer warranty and expert support.

All shipments are fully insured; orders over $150 require a signature. FedEx Express 2-Day and Overnight within the US. Returns accepted within 14 days and are subject to a 15% restocking fee.

Shipping Policy · Return & Refund Policy

Choose in-store pickup at any of our stores at checkout; ready within 24 hours items that are in stock that day at the store, and for items that need transfer, typically 2-4 business days.

We offer a concierge trade-in program. Start on our Trade // Sell page, and a team member will follow up with an estimate. We offer competitive trade-in values, complimentary shipping if you can't bring your items into the store, and fast and easy processing.

Start your trade-in →

Fast Shipment

One-on-One Service

Easy Payment

Insured & Safe

24.2MP 35mm full-frame CMOS sensor with anti-reflection coating
779-point phase hybrid autofocus, detection down to EV -6
5-axis, 5-stop body image stabilization; 6.5 stops with Dual I.S. 2
Active I.S. for steadier handheld walking shots
96MP equivalent High Resolution mode at 12,000 x 8,000 px
Apple ProRes 422 HQ and 4:2:2 10-bit All-Intra to external USB SSD
6K and 5.8K full sensor open gate recording
14+ stop V-Log and V-Gamut capture with REAL TIME LUT
Unlimited 4:2:2 10-bit C4K and 4K 60p from 0 to 104 degrees Fahrenheit
5.9K 12-bit RAW output over HDMI to compatible Atomos and Blackmagic recorders
30 fps burst with the electronic shutter, 9 fps mechanical
Wireless and wired IP streaming over RTMP and RTMPS

Scope of Delivery:

Panasonic LUMIX S5IIX mirrorless camera body
DMW-BLK22 rechargeable lithium-ion battery
AC adapter
USB-C to USB-A cable
Shoulder strap
Body cap
Hot shoe cover
Battery grip connector cover

Limited Warranty:

Panasonic covers the S5IIX with a one-year limited warranty on parts and labor, and 90 days on included accessories such as the battery. Registering the camera with LUMIX Pro Services extends body coverage to three years when it was bought from an authorized dealer. Camera West is an authorized Panasonic LUMIX dealer, so registration and warranty service go through without friction.

General

Type: Digital single lens mirrorless camera

Lens Mount: L-Mount

Manufacturer Number: DC-S5M2XBODY

Autofocus: Phase detection and contrast AF, 779 points, EV -6 to 18

Image Stabilization: 5-axis, 5-stop body I.S.; up to 6.5 stops with Dual I.S. 2

Shutter Speed: Stills 1/8,000 to 60 sec plus Bulb (max 30 minutes); video 1/16,000 to 1/2 sec

Flash Sync Speed: 1/250 sec

Burst Rate: 30 fps electronic shutter; 9 fps mechanical (7 fps with AFC)

Weather Sealing: Dust and splash resistant

Sensor

Sensor: 35mm full-frame (35.6 x 23.8mm) CMOS with anti-reflection coating

Effective Pixels: 24.2 megapixels (25.28 megapixels total)

ISO Range: 100 to 51200, expandable to 50 and 204800

Dual Native ISO: 100 and 640 in Normal; 640 and 4000 in V-Log

High Resolution Mode: 96 megapixel equivalent, 12,000 x 8,000 px

Still Formats: JPEG (DCF, Exif 2.31) and RAW

Metering: 1,728-zone multi-pattern sensing, EV 0 to 18

Video

Open Gate: 6K 5952 x 3968 (3:2) and 5.9K 5888 x 3312 up to 29.97p, 4:2:0 10-bit

ProRes: 5.8K 5776 x 3056 up to 29.97p, ProRes 422 HQ to 1.9Gbps, external USB SSD

C4K and 4K: Up to 59.94p, 4:2:2 10-bit All-Intra to 800Mbps on external USB SSD

Full HD: Up to 119.88p, 4:2:2 10-bit All-Intra

Recording Formats: MOV (H.264, H.265, Apple ProRes) and MP4 (H.264, H.265)

Log: V-Log and V-Gamut, 14+ stops

HDMI RAW Output: Yes, to compatible Atomos and Blackmagic recorders

Recording Limit: None for 4:2:2 10-bit C4K and 4K 60p from 0 to 104 degrees Fahrenheit

Viewfinder and Display

Viewfinder: OLED, approx. 3.68 million dots, 0.78x magnification, 100% field of view

Eye Point and Diopter: Approx. 21mm; -4.0 to +2.0 dpt

Display Speed: 120fps or 60fps

Monitor: 3.0-inch free-angle touchscreen LCD, approx. 1.84 million dots, 3:2 aspect

Connectivity

USB: USB Type-C, SuperSpeed 10Gbps (USB 3.2 Gen 2), supports external SSD recording

HDMI: HDMI Type A

Audio: 3.5mm microphone input and 3.5mm headphone output; 4-channel and XLR input with the optional DMW-XLR1

Remote Input: 2.5mm

Memory: Two SD slots, both UHS-II compatible

Wireless: Built-in Wi-Fi and Bluetooth

Streaming: Wireless and wired IP streaming over RTMP and RTMPS

Power

Battery: DMW-BLK22 rechargeable lithium-ion

Battery Life: Approx. 380 frames with LCD or finder; up to 1,500 in Power Save LVF mode

Charging: In-camera over USB-C using the supplied AC adapter

Dimensions

Dimensions: 134.3 x 102.3 x 90.1 mm (5.29 x 4.03 x 3.55 in)

Weight: Approx. 740 g (1.63 lb) with battery, one SD card and hot shoe cover

Learn More

Records Straight To SSD

The S5IIX writes Apple ProRes 422 HQ at up to 1.9Gbps and 4:2:2 10-bit All-Intra directly to an external SSD over USB-C, so long takes do not fill SD cards and the footage lands in an edit-ready codec. Full sensor open gate recording at 6K and 5.8K gives you room to crop vertical and square deliverables out of the same take.

779-Point Phase AF

This generation moved LUMIX from contrast and DFD focusing to phase detection, with 779 points and a detection range down to EV -6. Subject detection covers human face, eye and body plus animals, and once a subject is locked the camera keeps it when other people or objects cross the frame. The practical difference shows up most in continuous autofocus while recording.

Built To Keep Rolling

A small fan and a heat sink sit inside the body, which is what allows 4:2:2 10-bit C4K and 4K 60p recording with no time limit from 0 to 104 degrees Fahrenheit. Live streaming runs two ways: wireless RTMP and RTMPS set up through the LUMIX Lab app, or a wired connection when you need the stability of a cable.
